Výrobní program – Munice

AMMUNITION 20 X 102 MM (cartridge TP, API-T, HEI)

20 x 102 mm ammunition is equivalent of M50 series 20 x 102 mm ammunition, complying with NATO standard STANAG 3585, Ed. 4. Ammunition is compatible with the M39 / M56 / M61A guns, THL 20 gun (Nexter/GIAT), PL 20 gun (ZVI), and others.

CARTRIDGE 20 x 102 mm TP-T, TP

• Overall length max. 168 mm
• Projectile weight ca 101 g
• With tracer / without tracer
• Tracer burning time min. 3 s
• Muzzle velocity V24 1030 ± 15 m/s
• Accuracy: mean radii max. 381 mm at 548 m
• For training purposes / target practice



CARTRIDGE 20 x 102 mm API-T, AP-T, API, AP

• Overall length max. 168 mm
• Projectile weight ca 101 g
• With tracer / without tracer
• Tracer burning time min. 3 s
• Muzzle velocity V24 1030 ± 15 m/s
• Accuracy: mean radii max. 381 mm at 548 m
• For training purposes / target practice



CARTRIDGE 20 x 102 mm HEI-T/SD, HEI-T, HEI, HE

• Overall length max. 168 mm
• Projectile weight ca 101 g
• Point detonating fuse
• Self-destruct mechanism (HEI-T/SD version only)
• RDX based explosive charge
• Fragmentation and incendiary effect
• With tracer / without tracer
• Tracer burning time min. 3 s
• Muzzle velocity V24 1030 ± 15 m/s
• Accuracy: mean radii max. 381 mm at 548 m



---

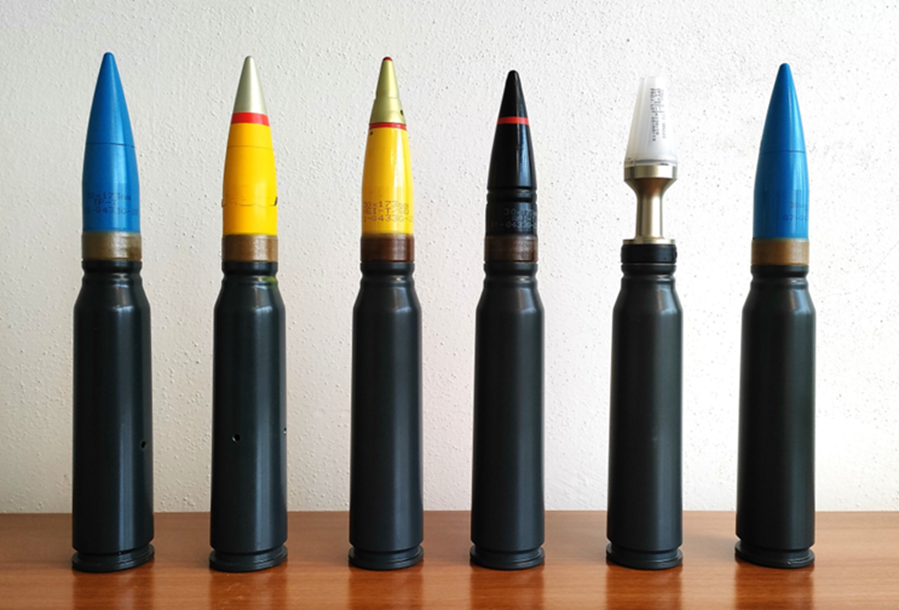

AMMUNITION 30 X 173 MM

30 x 173 mm ammunition is intended for use with guns Bushmaster II/MK44, Mauser MK 30-2, GTS-30/N, and others. The 30 x 173 mm ammunition from ZVI complies with requirements of STANAG 4624 standard and other related documents.

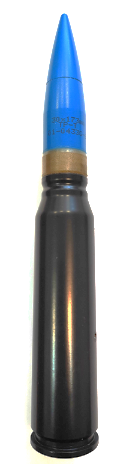

CARTRIDGE 30 x 173 mm TP-T, TP

• Overall length max. 290 mm
• Projectile weight ca 363 g
• Low drag design
• Trajectory match according to STANAG 4624
• With tracer / without tracer
• Tracer burning time min. 3 s
• Muzzle velocity 1070 ± 15 m/s
• Dispersion max. 0.4 mil
• For training purposes / target practice

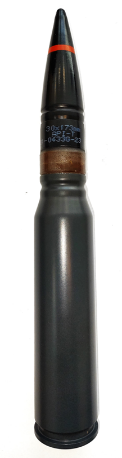

CARTRIDGE 30 x 173 mm API-T, AP-T, API, AP

• Overall length max. 285 mm
• Projectile weight ca 385 g, with hardened steel penetrator
• Low drag design
• Trajectory match according to STANAG 4624
• Penetration effect:
≥ 26 mm RHA / 60°/ 1000 m
≥ 35 mm RHA / 0°/ 1000 m
• Incendiary effect delivered inside the target
• With tracer / without tracer
• Muzzle velocity 1070 ± 15 m/s
• Dispersion max. 0.5 mil

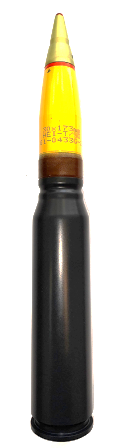

CARTRIDGE 30 x 173 mm HEI-T/SD, HEI-T, HEI, HE

• Overall length max. 290 mm
• Projectile weight ca 365 g
• Low drag design
• Trajectory match according to STANAG 4624
• Point detonating fuse
• Self-destruct mechanism
• RDX based explosive charge
• Fragmentation and incendiary effect
• With tracer / without tracer
• Muzzle velocity 1070 ± 15 m/s
• Dispersion max. 0.5 mil

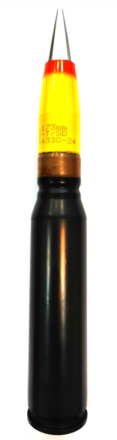

CARTRIDGE 30 x 173 mm SAPHEI-T/SD

• Overall length max. 290 mm
• Projectile weight ca 364 g
• Low drag design
• Trajectory match according to STANAG 4624
• Point detonating fuse, delayed action
• Multi-purpose ammunition
• Penetration, fragmentation and incendiary effect in one round
• Delivers heavy fragments inside the target
• RDX based explosive charge
• Incendiary composition
• Tracer burning time ca 4 s
• Penetration min. 10 mm RHA / 60° / 1000 m
• Self-destruct at ca 2800 m / 4 s
• Effective against wide range of targets
• Light armour penetration capability
• Muzzle velocity 1070 ± 15 m/s
• Dispersion max. 0.4 mil

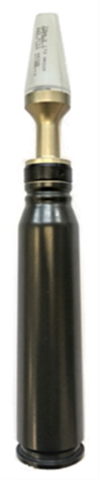

CARTRIDGE 30 x 173 mm APFSDS-T

• Overall length max. 281 mm
• Projectile weight ca 230 g
• Tungsten penetrator, fin stabilized
• Tracer burning time ca 2 s
• Very low velocity drop
• Penetration min. 95 + 20 mm RHA / 0°/ 1000 m
• Very high penetration effect, but also fragmentation and incendiary effect
• Muzzle velocity 1430 ± 15 m/s
• Dispersion max. 0.3 mil



---



AMMUNITION 30 X 165 MM

Ammunition is compatible with automatic guns 2A42, 2A72 and 2A38, and others.

CARTRIDGE 30 x 165 mm AP-T

• Overall length max. 293 mm
• Projectile weight ca 400 g, with hardened steel penetrator
• Penetration effect min. 20 mm RHA / 60°/ 1000 m
• Tracer burning time min. 3.5 s
• Muzzle velocity 970 ± 15 m/s
• Probable dispersion at 1000 m: ≤ 1 m



CARTRIDGE 30 x 165 mm HE-T

• Overall length max. 293 mm
• Projectile weight ca 386 g
• Point detonating fuse
• Self-destruct mechanism
• RDX based explosive charge
• Fragmentation and incendiary effect
• Tracer burning time min. 7 s
• Muzzle velocity 960 ± 15 m/s
• Probable dispersion at 1000 m: ≤ 1 m



CARTRIDGE 30 x 165 mm HEI

• Overall length max. 293 mm
• Projectile weight ca 386 g
• Point detonating fuse
• Self-destruct mechanism
• RDX based explosive charge
• Fragmentation and incendiary effect
• Tracer burning time min. 7 s
• Muzzle velocity 960 ± 15 m/s
• Probable dispersion at 1000 m: ≤ 1 m





---
